JEG-0740 LED COLOR MOVING HEAD

Power supply: AC100-240V ，50-60Hz

Power consumption：380W

Light source：osram 7x40W RGBW 4IN1 led

Lifetime of led ：more than50000 hours

Color temperature：2800K-8500K

Beam angle：4.5°-45°

display：LCD display

Protection level: IP20

Control mode：stand alone，master/slave mode，DMX512

Dmx protocol：11/17/18/38channels

Pan movement：540°（16bit）

Tilt movemnt：270°（16bit）

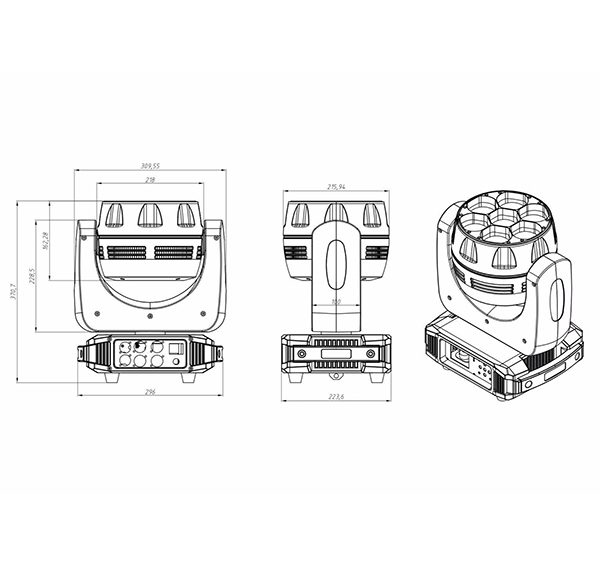

size：300*230*380mm

Gross weight：9.20KGS

feature

Motorized zoom

Circular controlled

Color temperature can be adjusted by dmx signal.

Large beam angle, wide coverage and long distance

function

Beam angle：4.5°-45°

control mode：DMX512mode，main sound mode，slave sound mode

DMX512 mode：11/17/18channels

individual control of each led:38channels

Support RDM function

Network Function available: Artnet, Klingnet, sACN Protocol

Smooth mechanical focus, circular control

Speed of strobe adjustable, built-in macro strobe

Built-in high efficiency heat radiation system, over-temperature auto protection

Pan movement：540°+ 16bit fine

Tilt movement：270°+16bit fine
