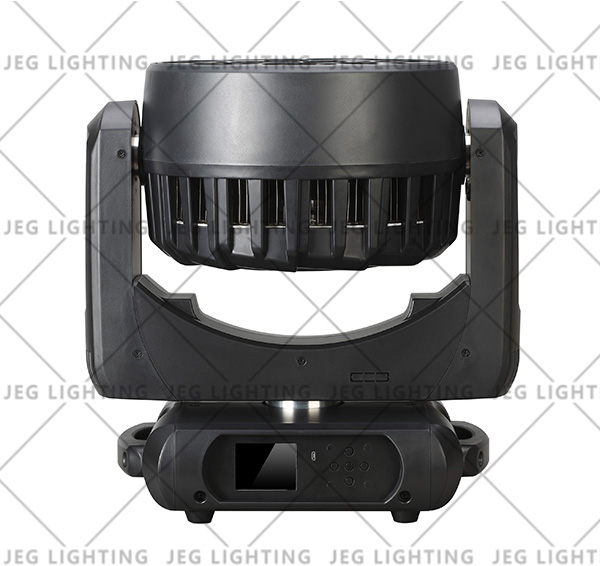

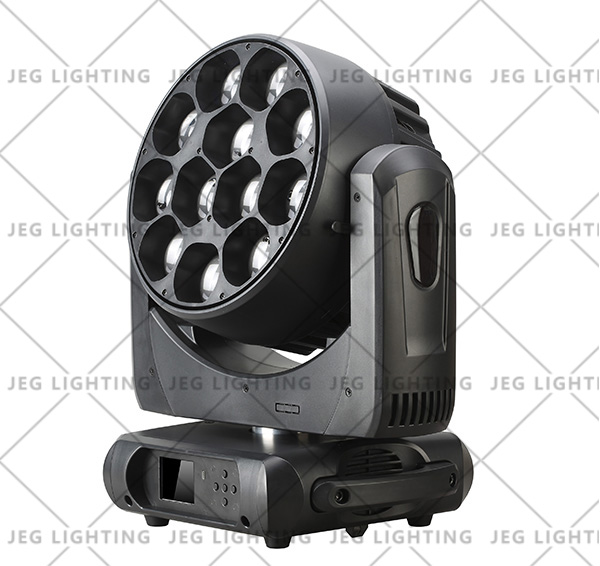

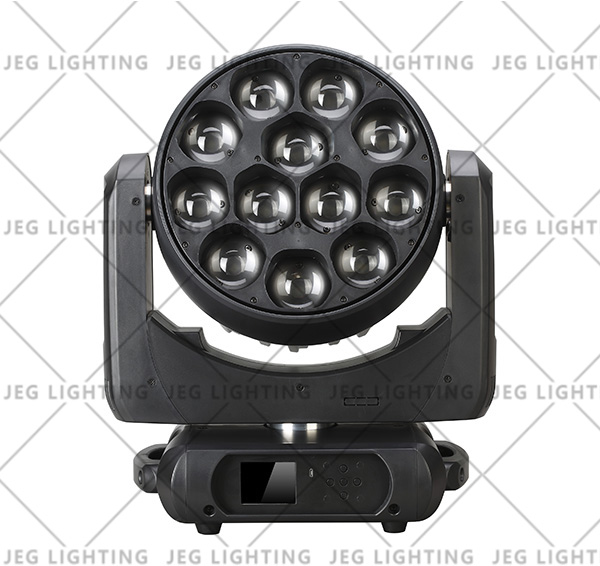

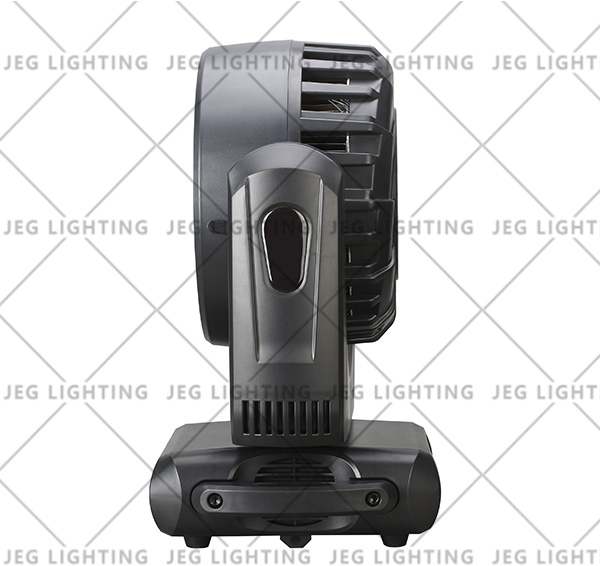

JEG-1240 LED COLOR MOVING HEAD

Power supply: AC100-240V ，50-60Hz

Power consumption：580W

Light source：Osram 12x40W RGBW 4IN1 led

Lifetime of led：more than 50000hours

Color temperature：2800K-8500K

Beam angle：4.5°-45°

Display：LCD display

Protection level: IP20

Control mode：stand alone，master/slave，DMX512

Dmx protocol：11/17/18/58channels

Pan movement：540°（16bit）

Tilt movement：270°（16bit）

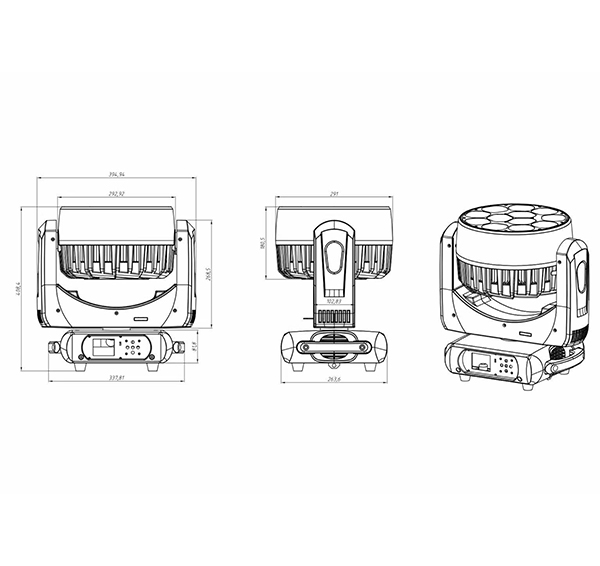

size：380*270*420mm

Gross weight：14.20KGS

feature

Motorized zoom

Circle led can be controlled by dmx signal

The color temperature can be controlled by dmx signal.

Large beam angle, wide coverage and long distance

function

Beam angle：4.5°-45°

control mode：DMX512，main sound control，slave sound control

DMX512 mode：11/17/18channels

individual control of each led:58channels

RDM function

Network Function available: Artnet, Klingnet, sACN Protocol

Smooth mechanical focus, circular control

Speed of strobe adjustable, built-in macro strobe

Built-in high efficiency heat radiation system, over-temperature auto protection

Pan movement：540°+ 16bit fine

Tilt movement：270°+16bit fine
